Mounting monitors to a wall is a practical solution for enhancing productivity and creating a more ergonomic workspace, whether for professional office use or an advanced gaming setup. A dual monitor wall mount not only frees up significant desk space but also allows for precise positioning of screens to reduce neck and eye strain. By elevating two monitors, users can achieve a clean, streamlined, and uniform setup. This guide provides a detailed analysis of some of the top dual monitor wall mounts available, based on their current specifications and features.
Understanding the Benefits of a Dual Monitor Wall Mount
Opting for a wall-mounted solution for your dual displays offers several distinct advantages. Primarily, it declutters the desk surface, providing a more organized and spacious work area. This can be particularly beneficial for tasks that require both digital and physical workspaces.
From an ergonomic perspective, wall mounts allow for a greater range of height and depth adjustments compared to standard desk stands. This enables users to position their screens at direct eye level, which is a key recommendation for maintaining proper posture and reducing physical strain during long hours of use. For those looking to create a seamless viewing experience across two screens, a dual mount ensures perfect alignment.
Detailed Comparison of Top Dual Monitor Wall Mounts for 2025
This table offers a comprehensive side-by-side look at the key specifications for each of the evaluated dual monitor wall mounts. All information has been updated to reflect current product details.
| Feature | WALI GSWM002 | HUANUO HNWDS7 | MOUNT UP MU2004 | SIIG CE-MT3C11-S1 | StarTech.com ARMWALLDS2 |
| Max Monitor Size | Up to 32 inches | Up to 32 inches | Up to 32 inches | Up to 32 inches | Up to 24 inches |
| Weight Capacity (Per Arm) | 19.8 lbs (9 kg) | 17.6 lbs (8 kg) | 17.6 lbs (8 kg) | 19.8 lbs (9 kg) | 11 lbs (5 kg) |
| VESA Compatibility | 75x75mm, 100x100mm | 75x75mm, 100x100mm | 75x75mm, 100x100mm | 75x75mm, 100x100mm | 75x75mm, 100x100mm |
| Tilt Range | +75° / -45° | +85° / -50° | +90° / -45° | +45° / -45° | +15° / -15° |
| Swivel Range | ±90° | ±90° | ±180° | ±90° | ±180° |
| Screen Rotation | 360° | 360° | 360° | 360° | 360° |
| Max Arm Extension | 21.2 inches | 18.3 inches | 22 inches | 14.8 inches | 23 inches |
| Min. Distance from Wall | 3.2 inches | 4 inches | 4 inches | Not specified | 6.5 inches |
| Primary Material | High-Grade Steel/Aluminum | Aerospace-Grade Aluminum | High-Quality Aluminum | Aluminum | Alloy Steel |
| Adjustment Mechanism | Gas Spring | Gas Spring | Gas Spring | Gas Spring | Mechanical Arm |
In-Depth Analysis of the 5 Leading Dual Monitor Wall Mounts
This section provides a detailed breakdown of each product, focusing on its features, capabilities, and ideal use cases.

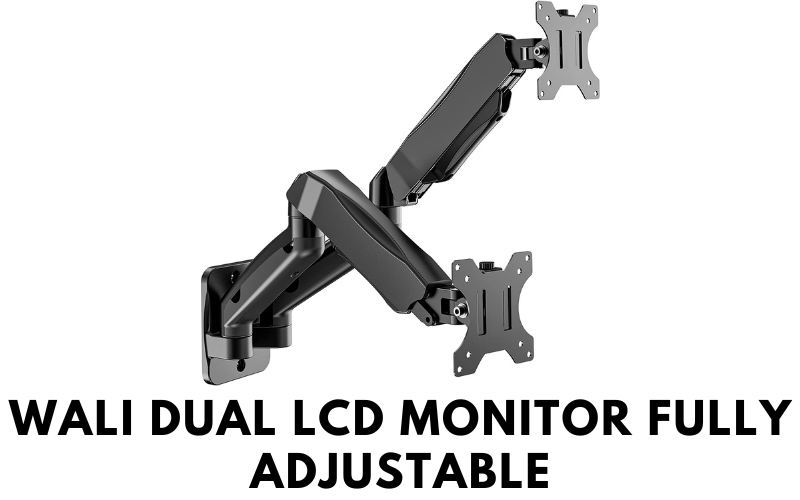

1. WALI Dual LCD Monitor Fully Adjustable Gas Spring Wall Mount (GSWM002)
Key Specifications
- Max Monitor Size: Up to 32 inches
- Weight Capacity: 19.8 lbs (9 kg) per arm
- VESA Compatibility: 75x75mm, 100x100mm
- Articulation: +75°/-45° tilt, ±90° swivel, 360° rotation
- Max Extension: 21.2 inches
Objective Analysis
The WALI GSWM002 is a versatile and robust solution designed for users who require a high degree of flexibility. Its gas spring mechanism allows for smooth, tool-free adjustments, making it easy to change monitor height and position. With a substantial weight capacity of 19.8 lbs per arm, it can support a wide range of monitors up to 32 inches.
The mount’s full articulation, including a significant tilt and swivel range, enables precise viewing angle optimization. This is particularly useful for reducing glare and achieving an ergonomic posture. Integrated cable management channels help maintain a tidy workspace by routing cables along the arms. For users seeking a flexible and strong mount for standard to large monitors, the GSWM002 offers a compelling feature set. For those who may be considering other mounting options, exploring a quality best dual monitor stand can provide useful alternatives.

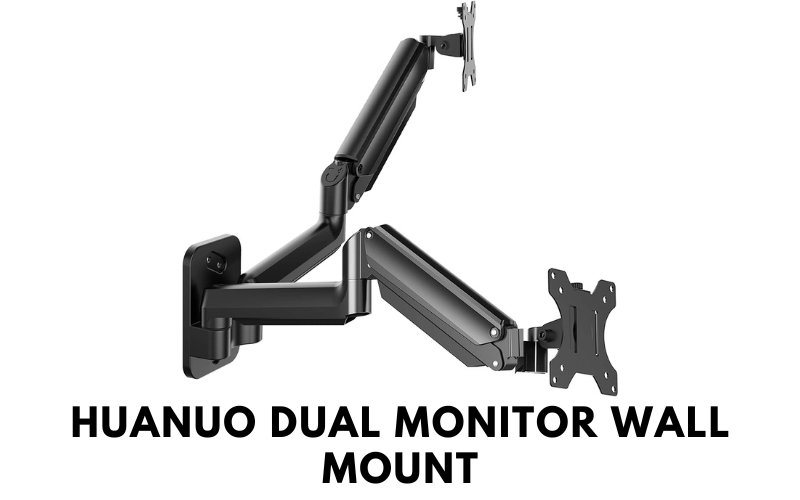

2. HUANUO Dual Monitor Wall Mount (HNWDS7)
Key Specifications
- Max Monitor Size: Up to 32 inches
- Weight Capacity: 17.6 lbs (8 kg) per arm
- VESA Compatibility: 75x75mm, 100x100mm
- Articulation: +85°/-50° tilt, ±90° swivel, 360° rotation
- Max Extension: 18.3 inches
Objective Analysis
The HUANUO HNWDS7 is engineered with aerospace-grade aluminum, offering a balance of strength and a sleek design. It supports monitors up to 32 inches and provides a smooth range of motion thanks to its gas spring system. The impressive tilt range of +85° to -50° is a key feature, allowing for a wide variety of viewing angles suitable for both seated and standing positions.
This mount is designed to optimize the workspace by securely holding two monitors, which can enhance productivity and reduce physical strain. The integrated cable management system ensures that wires are kept organized and out of sight. It is a suitable choice for users who value both aesthetic design and broad adjustability in their dual monitor setup.

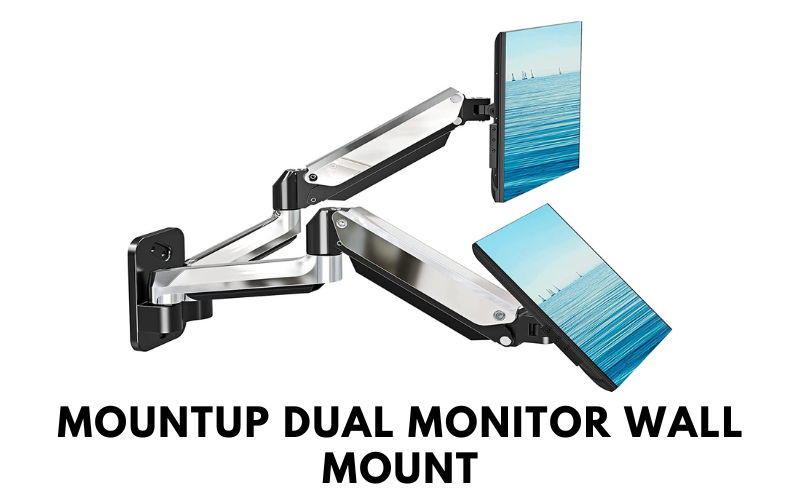

3. MOUNT UP Vertical Dual Monitor Wall Mount (MU2004)
Key Specifications
- Max Monitor Size: Up to 32 inches
- Weight Capacity: 17.6 lbs (8 kg) per arm
- VESA Compatibility: 75x75mm, 100x100mm
- Articulation: +90°/-45° tilt, ±180° swivel, 360° rotation
- Max Extension: 22 inches
Objective Analysis
The MOUNT UP MU2004 stands out with its substantial arm extension of 22 inches and a wide ±180° swivel capability. This makes it an excellent option for users needing to frequently share their screen with others or who have a deep desk requiring longer reach. The gas spring arms facilitate effortless adjustments, allowing each monitor to be positioned independently.
Constructed from high-quality aluminum, this mount provides a stable platform for monitors up to 32 inches. Its full motion capabilities ensure that users can find the most comfortable and ergonomic viewing position, easily switching between landscape and portrait orientations. The ease of installation, supported by detachable VESA plates, makes it a user-friendly option for setting up an ergonomic dual monitor configuration.

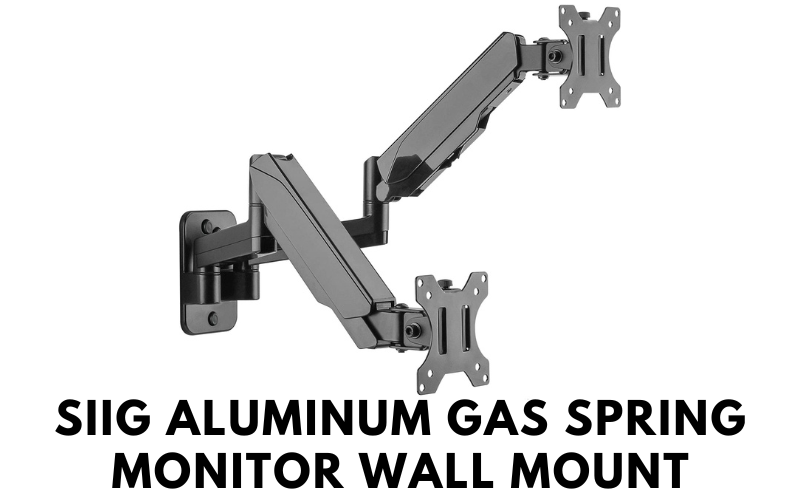

4. SIIG Aluminum Gas Spring Dual Monitor Wall Mount (CE-MT3C11-S1)
Key Specifications
- Max Monitor Size: Up to 32 inches
- Weight Capacity: 19.8 lbs (9 kg) per arm
- VESA Compatibility: 75x75mm, 100x100mm
- Articulation: +45°/-45° tilt, ±90° swivel, 360° rotation
- Max Extension: 14.8 inches
Objective Analysis
Update Note: The original article referenced a different SIIG model. The CE-MT3C11-S1 is a current, comparable dual monitor wall mount from the brand.
The SIIG CE-MT3C11-S1 is a reliable choice built with a focus on stability and ergonomic positioning. It supports two monitors up to 32 inches, each weighing up to 19.8 lbs. The gas spring system provides smooth height adjustment, while the full range of articulation allows for tailored screen positioning to suit individual user preferences, helping to alleviate neck, eye, and back strain.
A key feature is the quick-release VESA plate, which simplifies the process of attaching and removing monitors. This model also includes a robust cable management system to keep the workspace organized. Its sturdy aluminum construction ensures durability, making it a sound investment for both office and gaming environments where dependable support is critical. The principles of a good mount also apply to more specialized setups, such as those for a best triple monitor wall mount.

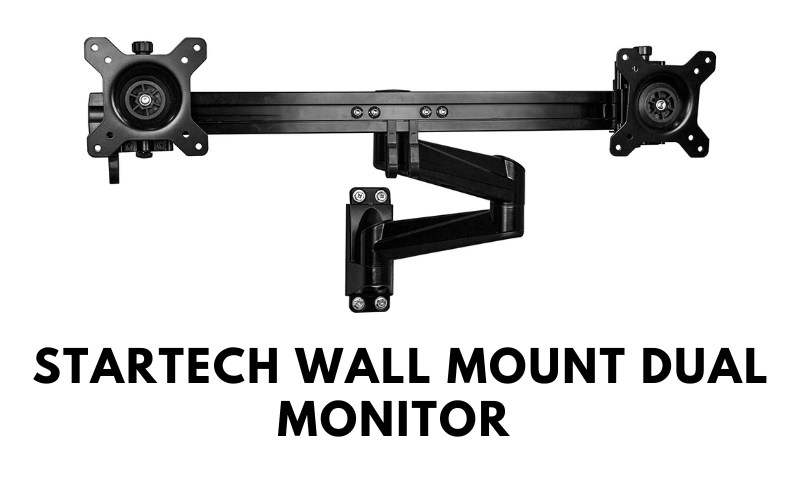

5. StarTech.com Articulating Dual Monitor Wall Mount (ARMWALLDS2)
Key Specifications
- Max Monitor Size: Up to 24 inches
- Weight Capacity: 11 lbs (5 kg) per monitor
- VESA Compatibility: 75x75mm, 100x100mm
- Articulation: +15°/-15° tilt, ±180° swivel, 360° rotation
- Max Extension: 23 inches
Objective Analysis
The StarTech.com ARMWALLDS2 is a heavy-duty solution designed with a unique crossbar that mounts both monitors on a single articulating arm. This ensures that both displays move in unison, maintaining perfect alignment. Constructed from alloy steel, it offers exceptional durability, though its weight capacity is more conservative at 11 lbs per monitor, making it best suited for displays up to 24 inches.
Its impressive 23-inch extension allows for significant reach, while its ability to fold to just 6.5 inches from the wall provides a low-profile footprint when not in use. While its tilt range is more limited compared to gas spring models, its robust build and synchronized movement are ideal for commercial environments, control rooms, or any setup where monitor alignment is paramount. Considering monitor compatibility is crucial; for instance, finding the best monitors for RTX 3070 and RTX 3080 involves similar attention to specs.
Key Factors to Consider When Selecting a Dual Monitor Wall Mount
Choosing the right wall mount involves evaluating several technical aspects to ensure it meets your specific needs.
VESA Compatibility
The VESA interface standard defines the distance between the four mounting holes on the back of a display. Common patterns are 75x75mm and 100x100mm. It is essential to verify that the wall mount’s VESA pattern matches your monitors’ specifications to ensure a secure fit.
Weight and Size Capacity
Every monitor mount has a maximum weight capacity and a recommended screen size limit per arm. Exceeding these limits can compromise the stability of the mount and the safety of your equipment. Always check the weight and size of your monitors and choose a mount that can comfortably support them. Understanding the differences between monitor types, like in an ultrawide vs regular monitor comparison, can also influence your mounting choice.
Articulation and Adjustability
The degree of movement a mount offers is critical for ergonomics. Key articulation features include:
- Tilt: The ability to angle the screen up or down to reduce glare and improve viewing comfort.
- Swivel: The ability to turn the screen left or right, useful for sharing the view.
- Rotation: The ability to turn the screen from landscape to portrait mode.
- Extension: The distance the arm can extend from the wall.
Cable Management
An integrated cable management system helps to conceal and organize monitor cables, contributing to a cleaner and more professional-looking setup. This feature routes wires along the mount’s arms, preventing them from hanging loosely.
Wall Type and Installation
Ensure the wall mount is compatible with your wall’s construction. Most mounts include hardware for installation on wood studs or solid concrete walls. Installing a mount on a wall type it is not designed for can be unsafe. The question of “can you mount a computer monitor on the wall” is yes, but proper installation is key.
Frequently Asked Questions (FAQ)
What is VESA, and why is it important for monitor mounts?
VESA is a standard established by the Video Electronics Standards Association that defines the mounting hole patterns for displays. It ensures that monitors and mounts from different manufacturers are compatible. Checking for VESA compatibility is the first step in confirming a mount will fit your screen.
Can any wall support a dual monitor mount?
No. Dual monitor wall mounts must be anchored securely to a structural element. They are typically designed for installation into wood studs or solid concrete walls. Attempting to install one on drywall alone is unsafe and will likely fail.
Is a gas spring arm better than a mechanical one?
A gas spring arm uses a pneumatic cylinder to make adjustments smooth and effortless, often without tools. A mechanical arm requires manual loosening and tightening of joints to reposition the monitor. Gas springs offer more convenience and a fluid motion, while mechanical arms are often found on mounts designed for heavy-duty stability.
How do I ensure my monitors are at an ergonomic height?
For optimal ergonomics, the top of your monitor screen should be at or slightly below your eye level. Your eyes should look slightly downward when viewing the center of the screen. A good wall mount allows for precise height adjustment to achieve this position.
Can I mount two different-sized monitors on a dual mount?
Yes, as long as both monitors are within the weight and size limits of the mount and share the same VESA pattern. Dual arm mounts with independent adjustments are ideal for this, as you can align the different-sized screens perfectly.
