For serious sim racers, selecting the right wheelbase is a critical decision, forming the heart of the entire driving experience. Within the high-end market, Fanatec’s Podium series has long been a benchmark for performance. This article provides a purely informational, fact-based comparison between two of its most well-known direct drive wheels: the Podium DD1 and the Podium DD2.
The goal here is not to persuade, but to present the most current and accurate data for, allowing you to understand the objective differences between these two powerful wheelbases. We will cover their specifications, core distinctions, and individual features to provide a complete picture.
Fanatec DD1 vs. DD2: Key Specifications at a Glance (2025)
This table offers a side-by-side comparison of the crucial data points for both the Fanatec Podium DD1 and DD2, reflecting their current specifications.
| Feature | Fanatec Podium Wheel Base DD1 | Fanatec Podium Wheel Base DD2 |
| Peak Torque | 20 Nm | 25 Nm |
| Holding Torque | 15 Nm | 20 Nm |
| Motor Type | Custom-designed Outrunner Servo Motor | Custom-designed Outrunner Servo Motor |
| Slew Rate | ~6.8 Nm/ms (est.) | > 9 Nm/ms (est.) |
| Cover Plates | Brushed Aluminum | Carbon Fiber |
| Kill Switch | Optional Add-on | Included |
| Remote Power Button | Not Included | Included (with Kill Switch) |
| Warranty (New Purchases) | 3 Years | 3 Years |
| Quick Release System | QR2 Base-Side (Type-M) | QR2 Base-Side (Type-M) |
| OLED Display | Yes (2.7-inch, 256×64) | Yes (2.7-inch, 256×64) |
| PC Compatibility | Yes | Yes |
| Xbox Compatibility | Yes (with Xbox-licensed wheel) | Yes (with Xbox-licensed wheel) |
| PlayStation Compatibility | No | No |
The Core Differences: A Detailed Analysis
While built on the same foundational technology, the DD1 and DD2 are distinguished by four primary factors.
Peak & Holding Torque: The Power Distinction
The most significant technical difference lies in the force feedback output.
- Fanatec Podium DD1: This wheelbase is electronically limited to a peak torque of 20 Newton-meters (Nm) and a sustained or “holding” torque of 15 Nm.
- Fanatec Podium DD2: The DD2 offers a higher output, with a peak torque of 25 Nm and a holding torque of 20 Nm.
What This Means: Peak torque refers to the maximum force the motor can generate for brief moments, such as impacts or sharp jolts. Holding torque is the continuous force it can sustain during prolonged cornering. The DD2’s higher values provide a greater dynamic range, meaning it can deliver stronger forces and maintain more detailed feedback without reaching its operational ceiling (clipping). While the DD1’s 20 Nm is more than sufficient for the vast majority of users, the DD2 provides that extra headroom for those seeking the most powerful and detailed force feedback possible.

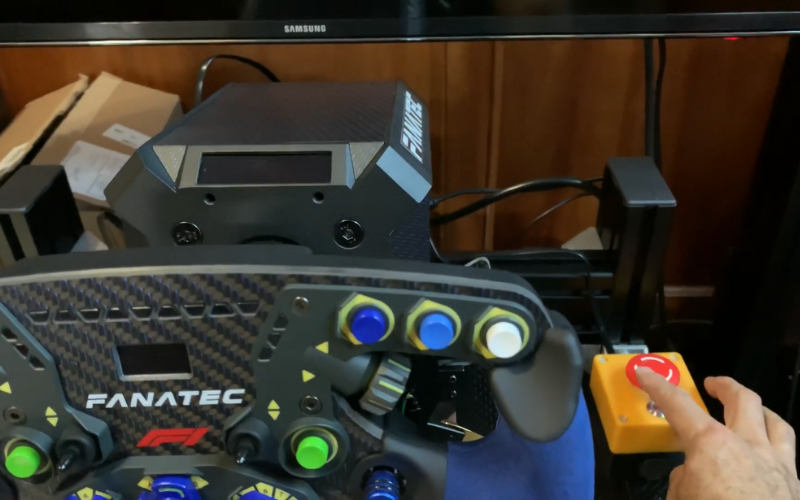

Included Components: The Kill Switch & Power Button
Another key differentiator is the inclusion of a critical safety and convenience feature. The Podium DD2 comes standard with an emergency Kill Switch that incorporates a remote power button. This allows the user to instantly cut power to the high-torque motor in an emergency.
The DD1 does not include this component in the box, though it is fully compatible and the Kill Switch can be purchased as a separate accessory.
Build Materials & Aesthetics
While both wheelbases share the exact same dimensions and all-aluminum housing, their cosmetic appearance differs slightly. The interchangeable cover plates on the DD1 are finished in brushed aluminum, whereas the DD2 features plates made of carbon fiber, giving it a more premium, motorsport-inspired look.
Warranty Period
As of a policy change in early, all newly purchased Fanatec products, including both the Podium DD1 and Podium DD2, now come with a standard 3-year manufacturer’s warranty. This is an important update, as previously the DD2 featured a longer warranty period, which was a significant value proposition. Now, both are on equal footing in this regard.
In-Depth Look: Fanatec Podium Wheel Base DD1
The Podium DD1 was designed to bring high-end direct drive technology to a broader segment of the serious sim racing market. It utilizes the same fundamental motor and housing as its more powerful sibling, making it a formidable piece of equipment.
Core Features & Technology
- Outrunner Motor: Engineered specifically for sim racing, this motor provides exceptionally low torque ripple, ensuring a smooth delivery of force without the “notchy” feeling found in some other motor designs.
- Wireless QR: Fanatec’s wireless data and power transfer between the wheelbase and steering wheel eliminates the need for coiled USB cables, creating a cleaner and more reliable connection. All new units ship with the updated and more robust QR2 system.
- Integrated Electronics: All necessary electronics are housed within the main unit, requiring no external control box. This simplifies the setup process and reduces clutter in your sim racing setup.
- OLED Display: The front-facing screen allows for on-the-fly tuning of force feedback settings and can display real-time telemetry data from supported games via Fanatec’s FanaLab software.
Official Platform Compatibility
The Podium DD1 is compatible with PC and is Xbox Ready. Xbox compatibility is enabled when an officially licensed Fanatec Xbox steering wheel is attached. This wheelbase is not compatible with PlayStation 4 or PlayStation 5 consoles and cannot be upgraded to achieve this.
Current Status in 2025
The Fanatec Podium DD1 remains an actively sold and supported product in the Fanatec ecosystem. It is positioned as a high-performance direct drive option for enthusiasts who do not require the absolute maximum torque output offered by the DD2. For those exploring other options in Fanatec’s lineup, the Fanatec CSL DD offers a lower-torque entry into the direct drive world.
In-Depth Look: Fanatec Podium Wheel Base DD2
The Podium DD2 stands as Fanatec’s flagship wheelbase, engineered to deliver maximum performance and durability for the most demanding users, including professional esports drivers.
Core Features & Technology
The DD2 shares all the core features of the DD1, including the Outrunner motor, wireless QR2, integrated electronics, and the OLED display. The primary enhancement is its electronics and firmware, which are designed to safely handle and sustain its higher torque output. The package also includes:
- Carbon Fiber Finish: As mentioned, the cover plates are made of carbon fiber.
- Included Kill Switch: The emergency stop and remote power button are included as standard.
- Higher Slew Rate: The DD2 boasts a faster slew rate (the speed at which the motor can respond to torque requests), which results in sharper, more immediate force feedback details.
Official Platform Compatibility
Similar to the DD1, the Podium DD2 is compatible with PC and becomes compatible with Xbox One and Xbox Series X|S consoles when paired with an Xbox-licensed Fanatec steering wheel. It is crucial to note that the Podium DD2 is not compatible with any PlayStation console.
Current Status in 2025
The Fanatec Podium DD2 is the brand’s top-tier wheelbase and continues to be actively sold and supported. It represents the pinnacle of Fanatec’s current force feedback technology and is intended for users who demand the highest level of performance and immersion, regardless of the cost of their sim racing setup.
What Are the Practical Benefits of a Direct Drive Wheel?
Choosing a direct drive system like a Podium DD1 or DD2 over a belt- or gear-driven wheel provides several key advantages:
- Unmatched Detail and Fidelity: By mounting the steering wheel directly to the motor shaft, there are no belts or gears to dampen the force feedback. This results in the most detailed and nuanced feedback, allowing you to feel every texture in the road surface and subtle loss of traction.
- Incredible Response Speed: The lack of intermediate mechanisms means the motor’s reaction is instantaneous. This speed allows a driver to catch slides and correct oversteer moments much faster and more intuitively.
- Sustained Power and Durability: Direct drive motors are built for industrial applications and are incredibly robust. They can deliver strong, consistent forces for hours without overheating or fading, making them ideal for long race sessions and ensuring a long operational life.
What Are the Potential Drawbacks?
While powerful, these wheelbases require some considerations:
- Mounting Requirements: The immense torque generated by the DD1 and especially the DD2 necessitates a very sturdy mounting solution. A desk clamp is not sufficient; a rigid aluminum profile sim racing cockpit or a robust steel racing wheel stand is essential to handle the forces without flex.
- Cost: As premium products, they represent a significant financial investment compared to entry-level or mid-range wheelbases.
Frequently Asked Questions (FAQ)
Is the Fanatec DD2 worth the extra cost over the DD1?
This is subjective and depends on user needs. For most sim racers, the 20 Nm of the DD1 is more than enough force. The primary benefits of the DD2 are the extra 5 Nm of peak torque for a greater dynamic range, the faster slew rate for sharper feedback, and the inclusion of the Kill Switch. If you are a professional or a discerning enthusiast who wants the absolute ceiling of performance, the DD2 may be justifiable.
Is the Fanatec DD1 still a good option?
Yes. The Fanatec DD1 remains a very high-performance wheelbase that delivers an exceptional direct drive experience. Its 20 Nm of torque is extremely strong and provides all the detail and power that the vast majority of sim racers will ever need.
What is the main advantage of a direct drive wheelbase?
The main advantage is the unparalleled level of detail and responsiveness in the force feedback. By directly connecting the steering wheel to the motor, you feel the purest translation of the simulation’s physics, which can lead to greater immersion and faster, more consistent lap times.
Do I need a special cockpit for a Fanatec Podium wheelbase?
Yes, a highly rigid cockpit is strongly recommended. The torque these wheelbases produce can easily cause flex or instability in less sturdy mounts, which compromises the feedback and can be unsafe. An 80/20 aluminum profile rig is the ideal solution.
Is the Fanatec DD1 or DD2 compatible with PlayStation 5?
No. Neither the Podium DD1 nor the DD2 is compatible with PlayStation consoles. For a Fanatec direct drive experience on PlayStation, you would need to look at a product like the Gran Turismo DD Extreme.
What is the difference between peak torque and holding torque?
Peak torque is the maximum force the motor can output for a very short duration, like during a crash or hitting a large curb. Holding torque is the maximum continuous force the motor can sustain over a longer period, such as through a long, high-speed corner. Holding torque is often considered a more important metric for overall FFB quality.
