For dedicated virtual racers, immersion is everything. While a quality wheel and pedal set forms the core of any setup, a sim racing button box is the component that bridges the gap between a gaming simulation and a true-to-life cockpit experience. It centralizes control, eliminates fumbling for a keyboard, and keeps your focus locked on the track.
This comprehensive guide explores the function of button boxes in modern sim racing. We will analyze several popular models, break down the essential features to look for, and provide the objective information needed to understand their role in your sim racing setup.
What Is a Sim Racing Button Box and Why Do You Need One?
A sim racing button box is a dedicated peripheral that provides an array of physical buttons, switches, and rotary dials, similar to what you’d find on a real race car’s dashboard. Connected to your PC or console via USB, it allows you to map crucial in-game functions—like ignition, lights, wipers, brake bias, pit limiter, and traction control—to dedicated, easy-to-reach inputs.
The primary benefit is enhanced control and immersion. Instead of pausing the action or searching for a key on a keyboard, you can make split-second adjustments with tactile feedback. This not only makes the experience more realistic but can also improve your performance, allowing you to react instantly to changing race conditions. A well-integrated button box is a cornerstone of a serious sim racing cockpit.
2025 Sim Racing Button Box: A Comparative Overview
This table provides a high-level comparison of the different types of button boxes discussed in this guide. Note that many units, especially from custom builders, offer significant configuration options.
| Feature | Logitech G Side Panel | RM Style Box (Console) | Classic ATS/ETS2 Box | Ultimate Flex Box (Discontinued) | Generic 32-Function Box |
| Total Functions | 25+ | ~24 | ~30+ | 32 | 32 |
| Primary Inputs | Push Buttons, 2-Axis Joystick | Push Buttons, Toggle Switches | Labeled Toggles, Push Buttons, Keyed Starter | Push Buttons, Toggle Switches, Rotary Encoders | Push Buttons, Rotary Encoders, Toggle Switches |
| Primary Compatibility | PC | PC, PlayStation, Xbox (Varies by model) | PC | PC | PC |
| Enclosure Material | Plastic | Carbon Fiber / Plastic / Metal (Varies) | Carbon Fiber / Metal (Varies) | Plastic | Carbon Fiber / Plastic |
| Backlighting | No | Optional (Varies by builder) | Optional (Varies by builder) | No | Optional (Varies by model) |
| Mounting | Included Clamp Mount | VESA / Custom Mount Holes | VESA / Custom Mount Holes | VESA Mount Holes | VESA / Custom Mount Holes |
| Connectivity | USB-A | USB-A | USB-A | USB-A | USB-A |
| Ideal For | Farming/Truck Sims, Racers needing a joystick | Console racers, multi-platform users | Trucking sim enthusiasts, themed rigs | (N/A) | PC racers seeking maximum inputs for the cost |
In-Depth Analysis of Sim Racing Button Boxes
Here, we’ll take a closer look at the specific products from the original article, updated with current 2025 information, focusing on their objective features and intended applications.

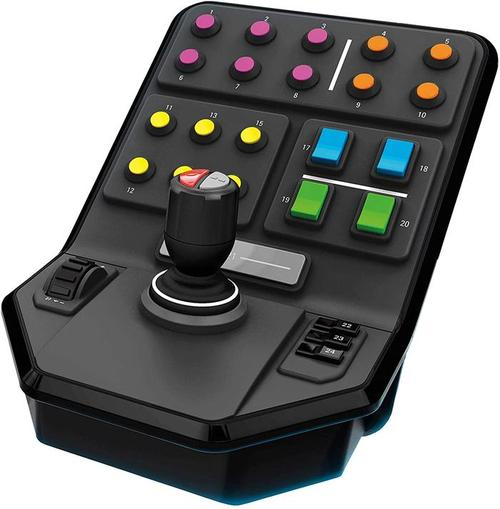

1. Logitech G Saitek Farm Sim Side Panel
The Logitech G Saitek panel is purpose-built for farming simulators but has found a dedicated following in the truck and sim racing communities due to its unique features and wide availability.
Key Features & Analysis
Its most prominent feature is the loader control stick, which operates on X and Y axes and includes a twist function for a third axis. In a racing context, this can be mapped to control the in-car camera, navigate menus, or even as a non-force-feedback handbrake. The panel includes 25 programmable buttons, providing ample control for auxiliary functions in games like Assetto Corsa Competizione or iRacing.
The construction is entirely plastic, which keeps it lightweight and affordable. However, it may lack the premium tactile feel of custom-built metal or carbon fiber boxes. It connects via a generous 2-meter USB cable and requires no special drivers for basic plug-and-play functionality on Windows.
Technical Specifications
- Controls: 25 programmable buttons, 1 side-scrolling wheel, 1 loader control stick (3-axis)
- Connectivity: USB-A
- Cable Length: 2 meters (6.5 ft)
- Hardware Platform: PC
- System Requirements: Windows 10, Windows 8.1, Windows 7
- Dimensions: 16.8 x 33.7 x 19.2 cm
- Weight: 1.1 kg
Ideal Use Case
This panel is exceptionally well-suited for users who play a variety of simulation games, especially sim racing games like Euro Truck Simulator 2 and Farming Simulator, in addition to racing titles. Its integrated joystick is a major advantage for operating in-game machinery or cameras without a separate controller.

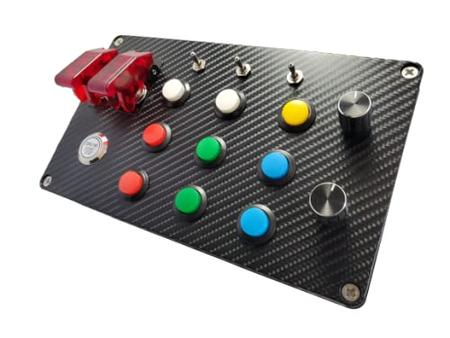

2. RM Sim Racing Button Box (PS4/PS5 Compatible)
The “RM Sim Racing Button Box PS4” from the original article appears to reference a unit from a custom builder, a common practice in the sim racing community. These boxes are often sold on platforms like Etsy or by specialized independent manufacturers. “RM” is not a mainstream brand, but many builders create similar products.
Key Features & Analysis
The key feature of this category of button boxes is console compatibility, a rarity in the market. While most button boxes are simple USB HID devices for PC, getting one to work on a PlayStation or Xbox requires specific electronics to be recognized as a legitimate controller.
A typical box in this class features a mix of inputs, including momentary push buttons, latching toggle switches (for functions like ignition or lights), and sometimes rotary encoders. They often feature a high-quality enclosure made from 3D-printed plastic, laser-cut acrylic, or carbon fiber faceplates.
Important Note: When looking for a console-compatible button box, it is crucial to verify its functionality with the specific console (PS4, PS5, Xbox One/Series X|S) directly with the manufacturer before purchase. For example, some options may require connection through a specific wheelbase like a Fanatec CSL DD to function.
Technical Specifications
(Based on a representative 2025 custom-built model)
- Controls: 9 push buttons, 2 toggle switches, 2 rotary encoders (24 total functions)
- Connectivity: USB-A
- Hardware Platform: PC, PS4, PS5 (verified by builder)
- Enclosure: Carbon fiber faceplate with a 3D-printed body
- Mounting: 75mm VESA mount pattern
Ideal Use Case
This type of button box is for the sim racer who primarily plays on a PlayStation console and desires the tactile control that PC users enjoy. It’s a specialized item for those looking to complete their console-based sim racing seats or cockpits.

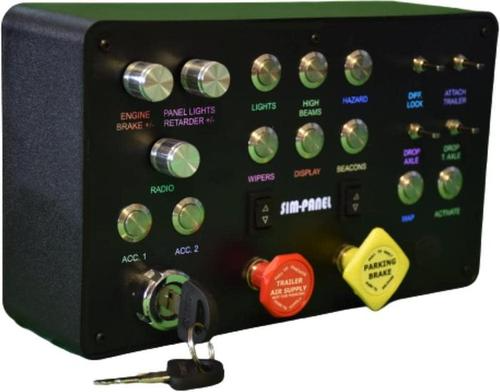

3. Classic ATS/ETS2 Style Button Box
This describes a category of button boxes thematically designed for truck simulators like American Truck Simulator and Euro Truck Simulator 2, but their functionality is universal for any PC simulation.
Key Features & Analysis
The defining characteristic of these boxes is their labeled controls. They typically come with pre-labeled inputs for common truck functions like “Engine Start/Stop,” “Parking Brake,” “Wipers,” “Lights,” and “Air Horn.” Many builders use a keyed switch for the ignition for an added layer of realism.
These are almost exclusively for the PC market and are built by smaller, dedicated hardware makers. Build quality is generally high, with a focus on robust toggle switches and industrial-style buttons. The enclosure is often metal or features a carbon fiber plate to withstand frequent use.
Technical Specifications
(Based on a representative 2025 custom-built model)
- Controls: 1 ignition key switch, 5 toggle switches, 2 rotary encoders, 10 push buttons (~30+ functions)
- Connectivity: USB-A
- Cable Length: 1.8 meters (6 ft)
- Hardware Platform: PC
- Enclosure: Aluminum box with carbon fiber faceplate
- Mounting: 75mm VESA mount pattern
Ideal Use Case
While designed for truckers, this style of box is an excellent choice for any sim racer who appreciates a pre-labeled, intuitive layout and a rugged, industrial aesthetic in their cockpit. They are a perfect match for users who split their time between racing and trucking sims.

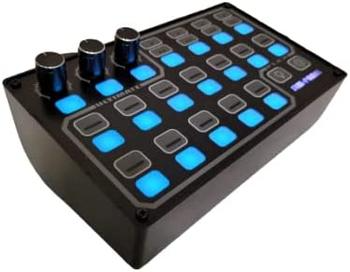

4. Ultimate Flex PC Simulator Button Box
The “Ultimate Flex PC Simulator Button Box” appears to be a product from a company that is no longer in operation as of 2025. Product listings and the original manufacturer’s website are not active.
Key Features & Analysis
Based on historical data, this was a 32-function PC button box that featured a combination of toggle switches, safety-covered switches, and rotary knobs. It was known for offering a high number of inputs in a compact, no-frills package, making it a functional choice for complex racing simulations.
Technical Specifications
- Status: Discontinued
- Original Functions: 32
- Original Connectivity: USB for PC
- Original Enclosure: Plastic
Ideal Use Case & Current Alternative
This unit was for PC sim racers who needed a high density of inputs without a large budget. For users seeking a modern, high-quality alternative with a similar function count, the Apex Sim Racing P-SPEC 2 Button Box is a suitable choice. It offers 32 functions through a mix of 12 tactile push buttons and 5 rotary encoders, housed in a robust carbon fiber and aluminum enclosure, making it a significant upgrade in build quality.

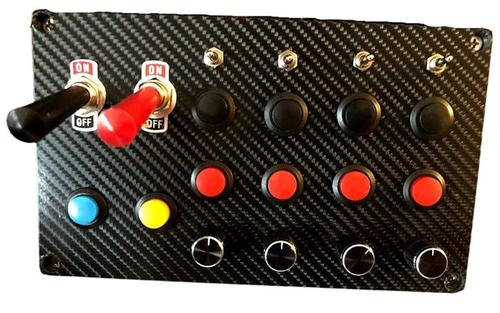

5. Generic 32-Function “Sim Box” Style Unit
This represents a popular category of non-branded or generically branded button boxes, often found on Amazon, eBay, and AliExpress. They are typically manufactured in large quantities and appeal to those seeking maximum functionality for the lowest possible cost.
Key Features & Analysis
The primary feature is the sheer number of inputs for the price. A typical “Sim Box 32” provides four or five rotary encoders and a dozen or more push buttons. The rotary encoders are especially useful for making incremental adjustments, such as changing brake bias, traction control levels, or engine maps.
Build quality can vary significantly. Most use a plastic or acrylic enclosure with a carbon-fiber-look vinyl wrap. While functionally sound, the buttons and knobs may not have the same positive, tactile click as more expensive, custom-built units. They are almost universally plug-and-play on PC. For more information on how a PC is assembled, you might find articles on what motherboard standoffs are or the main components on the motherboard useful.
Technical Specifications
(Based on a representative 2025 generic model)
- Controls: 4 clickable rotary encoders, 12 momentary push buttons (32 total functions)
- Connectivity: USB-A
- Hardware Platform: PC
- Enclosure: 3D Printed PETG or ABS Plastic
- Mounting: Includes desk clamp or has VESA mounting holes
Ideal Use Case
This type of box is ideal for the budget-conscious PC sim racer who needs a high number of programmable functions for complex sims like DCS (Digital Combat Simulator) or modern endurance racing titles. It provides extensive control without the significant investment required for a boutique, custom-built box.
Key Factors to Consider When Choosing a Button Box
Selecting the right button box depends entirely on your specific needs, setup, and budget.
Compatibility (PC vs. Console)
This is the most critical factor. The vast majority of button boxes are for PC only. They are recognized as simple USB input devices. If you race on a PlayStation or Xbox, you must purchase a box that is explicitly advertised as compatible with your console.
Number and Type of Inputs
Consider what functions you need to map.
- Push Buttons: Best for momentary actions like pit requests, flashing lights, or push-to-talk.
- Toggle Switches: Ideal for on/off states like ignition, headlights, or wipers. Safety-covered toggles add a satisfying, deliberate action for critical functions.
- Rotary Encoders: Perfect for multi-stage settings. Adjusting brake bias click-by-click is far more precise with a rotary dial than with a button.
Thinking about your preferred sim racing games and the functions you adjust most often will help determine the ideal configuration.
Build Quality and Materials
Enclosures range from basic 3D-printed plastic to sturdy aluminum and premium carbon fiber. While plastic is cost-effective, metal and carbon fiber provide superior durability and a more professional feel. The quality of the buttons and switches themselves also matters—look for components that provide satisfying tactile feedback.
Mounting and Ergonomics
How will the box fit into your setup? Most boxes come with a standard VESA mount pattern (75mm or 100mm) on the back, allowing them to be attached to aluminum profile rigs or monitor arms. Others include a desk clamp. Ensure the chosen box can be positioned comfortably within reach without obstructing your view or wheel. For complex setups, understanding how to utilize a dual monitor stand can be beneficial.
Frequently Asked Questions (FAQ)
How do you set up a sim racing button box?
For PC, it’s typically plug-and-play. Connect the box via USB, and Windows will recognize it as a generic game controller. Then, go into your racing simulator’s control settings menu. To assign a function, you’ll click on it in the menu and then press the desired button or turn the dial on your box to map it.
Can you use a button box for games other than sim racing?
Absolutely. Any game or application that accepts generic USB controller inputs can use a button box. They are popular with flight simulators (like Microsoft Flight Simulator), space sims (Elite Dangerous), and even for productivity shortcuts.
What’s the difference between a button box and a stream deck?
A button box uses physical buttons, switches, and dials with fixed functions. A Stream Deck uses customizable LCD screens as buttons, allowing for dynamic icons and multi-page profiles. While a Stream Deck is more versatile, many racers prefer the tactile, physical feedback of a traditional button box and the ability to operate it by feel without looking.
Is it better to build a DIY button box or buy a pre-built one?
If you have experience with electronics and soldering, a DIY box can be a rewarding and cost-effective project. However, pre-built boxes offer convenience, reliability, and a professional finish without the hassle. For most users, a pre-built unit is the more practical path.
Do professional sim racers use button boxes?
Yes, almost all professional and high-level sim racers use button boxes. In a competitive environment where split-second adjustments to brake bias, anti-roll bars, or differential settings are critical, having dedicated physical controls is an essential part of a competitive sim racing setup.
