The GT Omega Apex Wheel Stand is a notable contender for virtual racers seeking a stable and adaptable mounting solution without committing to the footprint of a full-scale sim racing cockpit. Positioned as a robust entry-point, it aims to provide a solid foundation for a wide array of steering wheels and pedals.
This in-depth review provides an objective analysis of the GT Omega Apex, focusing on its construction, performance, compatibility, and overall utility for the modern sim racing enthusiast. We will delve into its technical specifications and core features to determine its place in the current market.
GT Omega Apex at a Glance: Key Specifications
For users who require a quick overview, the following table details the core specifications of the current GT Omega Apex model.
| Feature | Specification |
| Material | Black powder-coated steel box section construction |
| Weight | 19.5 kg (43 lbs) |
| Base Dimensions | 58 cm x 94 cm (W x L) |
| Height Adjustment | Adjustable from 66 cm to 88 cm |
| Wheel Deck Angle | Adjustable |
| Pedal Plate Angle | Adjustable |
| Foldability | Folds down with hardware attached |
| Compatibility | Pre-drilled for Logitech, Thrustmaster, and Fanatec models |
| Included Accessories | Gear shifter mount (left or right side compatible), cradle for office chair wheels |
| Expandability | Compatible with GT Omega Rear Seat Frame & RS series seats |
Detailed Analysis of the GT Omega Apex Wheel Stand

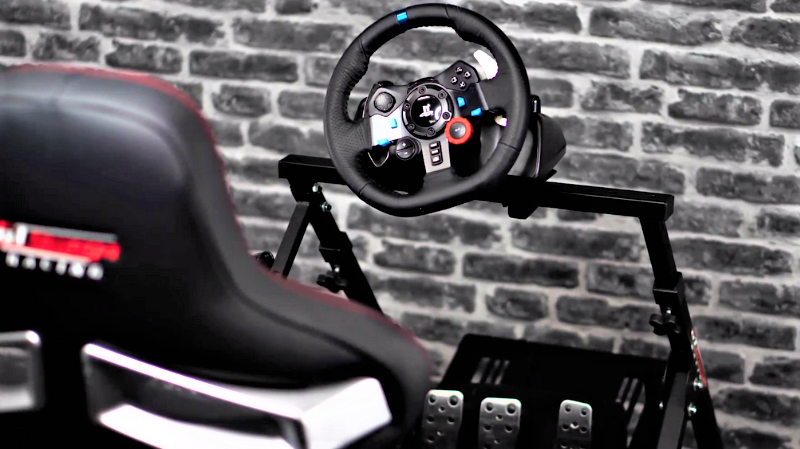

Build Quality and Materials: A Foundation of Steel
The defining characteristic of the GT Omega Apex is its substantial build quality. Constructed from heavy-duty steel box tubing, the frame provides a tangible sense of durability. The entire structure is finished with a matte black powder coat, which offers good resistance to scratches and scuffs from regular use.
This type of finish is practical for a piece of equipment that will be handled frequently, as it does not easily show fingerprints or dust, unlike high-gloss alternatives.
The hardware, including the bolts, knobs, and washers, is of commensurate quality. The use of robust metal fasteners ensures that once tightened, the adjustment points remain secure, contributing significantly to the stand’s overall rigidity. This level of material quality is essential for handling the forces generated by modern racing wheels. For anyone considering building a complete setup, understanding the cost implications is a good next step, as detailed in “How Much Does a Sim Racing Setup Cost?“.

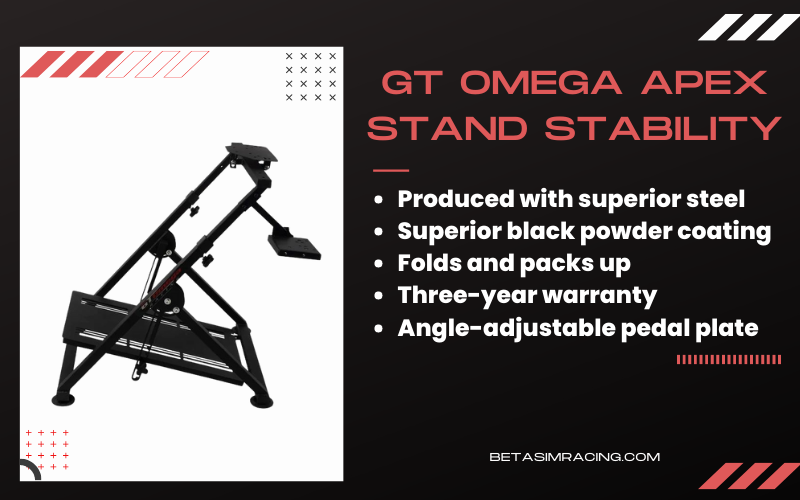

Stability and Performance Under Force
A wheel stand’s primary function is to provide a stable platform that doesn’t move or flex during intense racing sessions. The Apex achieves this through a combination of its weight (19.5 kg) and its wide footprint. This design minimizes wobble and lift, even during aggressive steering inputs and heavy braking.
The stand is equipped with large, non-slip rubber feet that anchor it firmly to the floor. On hard surfaces like wood or tile, these feet provide exceptional grip. The package also includes an innovative chair cradle that locks the front wheels of an office chair, preventing it from rolling backward under braking force—a common issue for users without dedicated sim racing seats.
Adjustability and Ergonomic Design
Ergonomic flexibility is critical for comfort and control over long periods. The Apex offers several key points of adjustment:
- Height: The main steering column can be raised or lowered significantly, accommodating a wide range of user heights and seating positions, from a low sofa to a standard office chair.
- Wheel Deck Angle: The plate where the steering wheel is mounted can be tilted, allowing users to find the most natural angle for their wrists and arms.
- Pedal Plate: The pedal plate features a wide range of angle adjustments, from nearly flat to a steep incline, catering to different driving styles and pedal sets.
Achieving the perfect driving position may require some initial trial and error, as multiple points need to be tuned. However, the range of motion is extensive enough to suit most body types and seating arrangements.
Device Compatibility and Pre-Drilled Support
Broad compatibility is a major strength of the Apex. The wheel deck and pedal plate come pre-drilled to natively support a vast range of hardware from major manufacturers.
- Logitech: Driving Force GT, G25, G27, G29, G920, and G923.
- Thrustmaster: T80, T150, T300 RS, T500 RS, TX, TMX, and others, including support for T3PA and T-LCM pedals. For a deeper look at one of these, see the Thrustmaster T300RS review.
- Fanatec: The stand supports many Clubsport, CSL, and Podium series wheels and pedals, including some direct drive wheels like the popular Fanatec CSL DD.
The included gear shifter mount can be attached to either the left or right side of the stand, offering further flexibility.

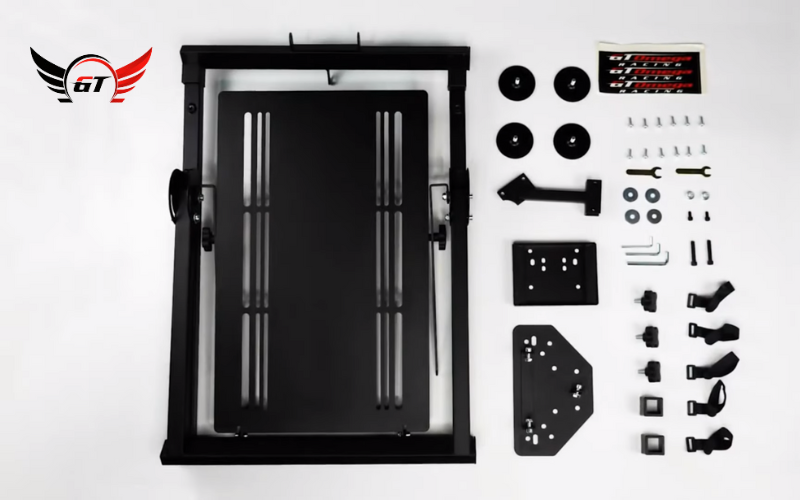

Assembly Process and Included Hardware
The GT Omega Apex arrives partially assembled, which simplifies the setup process considerably. The main frame is a single hinged unit. Users are only required to attach the pedal plate, the wheel deck, and the optional gear shifter mount.
GT Omega includes all necessary tools for assembly, a user-friendly touch that eliminates the need to search for your own wrenches and Allen keys. The instructions are straightforward, and the entire process can typically be completed in under 30 minutes.
Foldability and Storage for Compact Spaces
For users with limited space, the ability to store the stand is a key consideration. The Apex is designed to fold down quickly without requiring the removal of the attached wheel, pedals, or shifter. By loosening two large knobs at the base, the main steering column collapses downward.
While it doesn’t fold completely flat due to the attached hardware, its profile becomes compact enough to be slid under a bed or stood upright in a closet, making it one of the more convenient options in the best racing wheel stand category.
Expandability: From Stand to Full Cockpit
A significant advantage of the Apex is its forward-thinking design that allows for future upgrades. The stand is fully compatible with the GT Omega Rear Seat Frame. This optional add-on connects directly to the stand, transforming it into a full racing cockpit. This provides a clear and cost-effective upgrade path for racers who later decide they want a more permanent and immersive setup.
Who is the GT Omega Apex Wheel Stand For?
The GT Omega Apex Wheel Stand is positioned for a specific type of user. It is an ideal solution for:
- Beginner to Intermediate Sim Racers: Users moving up from a desk-mounted setup who require a significant increase in stability and adjustability.
- Racers with Limited Space: Its foldable design makes it highly suitable for multi-purpose rooms where a permanent cockpit is not feasible.
- Users with a Future Upgrade Path in Mind: The ability to convert it into a full cockpit provides excellent long-term value.
It may be over-engineered for those with entry-level, non-force-feedback wheels. Conversely, while it can handle some entry-level direct drive wheels, elite sim racers with high-torque systems might eventually seek the absolute rigidity of a heavy-duty aluminum profile cockpit.
Frequently Asked Questions (FAQ)
Is the GT Omega Apex stable enough for direct drive wheels?
The GT Omega Apex is known for its excellent stability and can handle entry-level direct drive wheelbases like the Fanatec CSL DD (5-8Nm) with minimal flex. For higher-torque direct drive systems (15Nm+), users may experience some movement and might prefer the ultimate rigidity of a full aluminum profile cockpit.
Can the GT Omega Apex be upgraded to a full racing cockpit?
Yes. The stand is designed to be fully compatible with the GT Omega Rear Seat Frame, which allows you to attach any of GT Omega’s standalone racing seats (like the RS6, RS9, or XL RS) to convert it into a complete cockpit.
What is the weight and are the dimensions of the GT Omega Apex?
The GT Omega Apex wheel stand weighs 19.5 kg (43 lbs). Its operational base footprint is 58 cm wide by 94 cm long. The height is adjustable from 66 cm to 88 cm.
Is the gear shifter mount included with the GT Omega Apex?
Yes, the gear shifter mount is included with the wheel stand. It can be installed on either the right or left side to accommodate user preference.
How does the GT Omega Apex compare to the Next Level Racing Wheel Stand 2.0?
Both are top contenders in the premium wheel stand market. The GT Omega Apex is often noted for its robust, all-metal construction and straightforward folding mechanism. The Next Level Racing Wheel Stand 2.0 features a similarly strong frame but also boasts a unique design for office chair integration and has its own path for upgrading to a full cockpit. The choice often comes down to specific compatibility needs and aesthetic preference.
Is the GT Omega Apex compatible with Thrustmaster, Logitech, and Fanatec hardware?
Absolutely. The wheel deck and pedal plate come pre-drilled with mounting holes that align perfectly with the most popular models from all three major brands, including the Logitech G-series, Thrustmaster T-series, and a wide range of Fanatec products.
